Reading Codes on dash of Nissan forklift

Nissan Sit down Rider LP Gas Forklift questions and answers
Post Reply
Guest

Reading Codes on dash of Nissan forklift

Post by Guest »

Have codes on the dash of a Nissan LP forklift, how do I get a description of the code and clear them? I think I saw a way to get into it by pressing numbers on the meter panel and it will show a description and option to clear the codes.
User avatar
butchfork
Site Admin
Posts: 39
Joined: Sun Aug 21, 2016 12:01 am

Re: Reading Codes on dash of Nissan forklift

Post by butchfork »

Well, since you did not tell us what model Nissan fork truck you had, we will give you the procedure if your dash looks like this below. This will give you a list of stored error codes and many other data parameters. You will then be able to clear the codes, but only after repairs have been made. If you do not repair the problem that set the codes, clearing them in the procedure below will not help, as the code will return.
See Error Code Chart
Step 1: Press and hold the #1 and 4 keys while turning the key to the "on" position.
Read codes on Nissan forklift.
Read codes on Nissan forklift.
2: Now the screen should show all the different data parameters to choose from. Use the #2(down arrow) key to go down the list of selections, each one highlighted as you move. Once you get to the bottom, the next page will show.

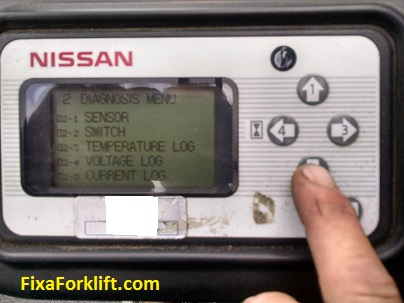

Nissan forklift- List of data parameters that can be viewed.
Nissan forklift- List of data parameters that can be viewed.
3. When you get to the second page, you will see "Fail Log".

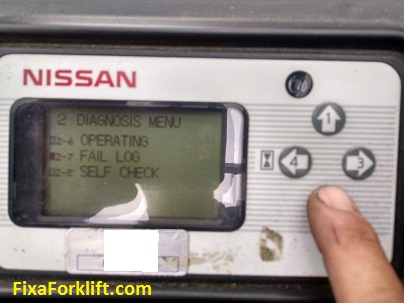

Nissan forklift- Select fail log.
Nissan forklift- Select fail log.
4. Now press the "ENTER" key, #5 on the pad to select the fail log of stored trouble codes. Each error code will be displayed with a short description of the trouble code.

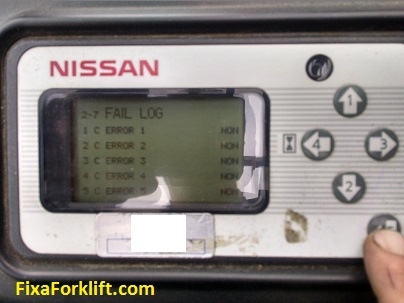

Nissan forklift- List of stored error codes.
Nissan forklift- List of stored error codes.
5. To clear them, page down until you see "Error Log Erase".

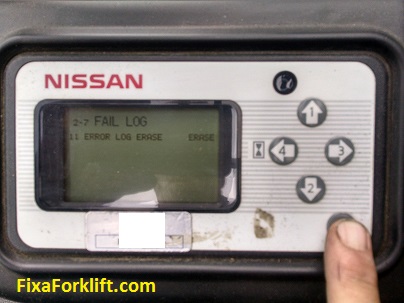

Nissan forklift- How to clear stored codes.
Nissan forklift- How to clear stored codes.
6. Now press the enter key to erase the stored codes after the repairs to the forklift have been made, then turn the key off and restart the truck normally. The code should now be cleared.

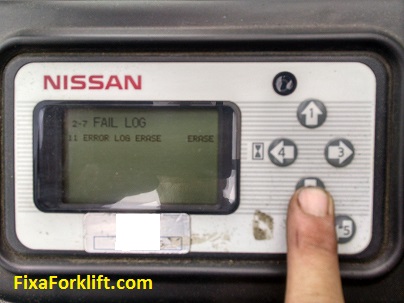

Nissan forklift- Press enter after repairs have been made.
Nissan forklift- Press enter after repairs have been made.
CERTIFIED TECHNICIAN - Jungheinrich Level 5
Caterpillar- Mitsubishi- Nissan
phong
Posts: 0
Joined: Sat Aug 12, 2017 2:52 am

Re: Reading Codes on dash of Nissan forklift

Post by phong »

Hi, I have a Nissan electric forklift the an error message.
"CHECK METER COMMUNICATION PROBLEM 558"
Can you tell me what this means or how to correct it.
User avatar
butchfork
Site Admin
Posts: 39
Joined: Sun Aug 21, 2016 12:01 am

Re: Reading Codes on dash of Nissan forklift

Post by butchfork »

We need to know what is the full model number off the data tag of this this Nissan forklift.
CERTIFIED TECHNICIAN - Jungheinrich Level 5
Caterpillar- Mitsubishi- Nissan
randy

Re: Reading Codes on dash of Nissan forklift

Post by randy »

Hi I have the same problem with my Nissan electric forklift
Model: T1B2L2OU
Serial no: T1B2-000119

error: “CONTROLLER COMMUNICATION MALFUNCTION: 558”
Vince

Re: Reading Codes on dash of Nissan forklift

Post by Vince »

My Nissan lpg forklift has a symbol on the dash looks like a large D battery with a explanation point in it. It also goes in limp mode.
User avatar
butchfork
Site Admin
Posts: 39
Joined: Sun Aug 21, 2016 12:01 am

Re: Reading Codes on dash of Nissan forklift

Post by butchfork »

could you post a picture of the warning symbol please.
CERTIFIED TECHNICIAN - Jungheinrich Level 5
Caterpillar- Mitsubishi- Nissan
David

Re: Reading Codes on dash of Nissan forklift

Post by David »

Nissan error code that’s reads P-04,F-04 which means ECM Communication. He to fix it. It’s on an Nissan model MCPL02A25LV type Lp
