Clark electric forklift Please Help

Basic electric forklift information related to all makes and models.
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

Some pictures of the charger
Attachments
Hobart forklift battery charger.
Hobart forklift battery charger.
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

Tag
Attachments
Hobart forklift battery charger data tag and information plate.
Hobart forklift battery charger data tag and information plate.
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

Panel
Attachments

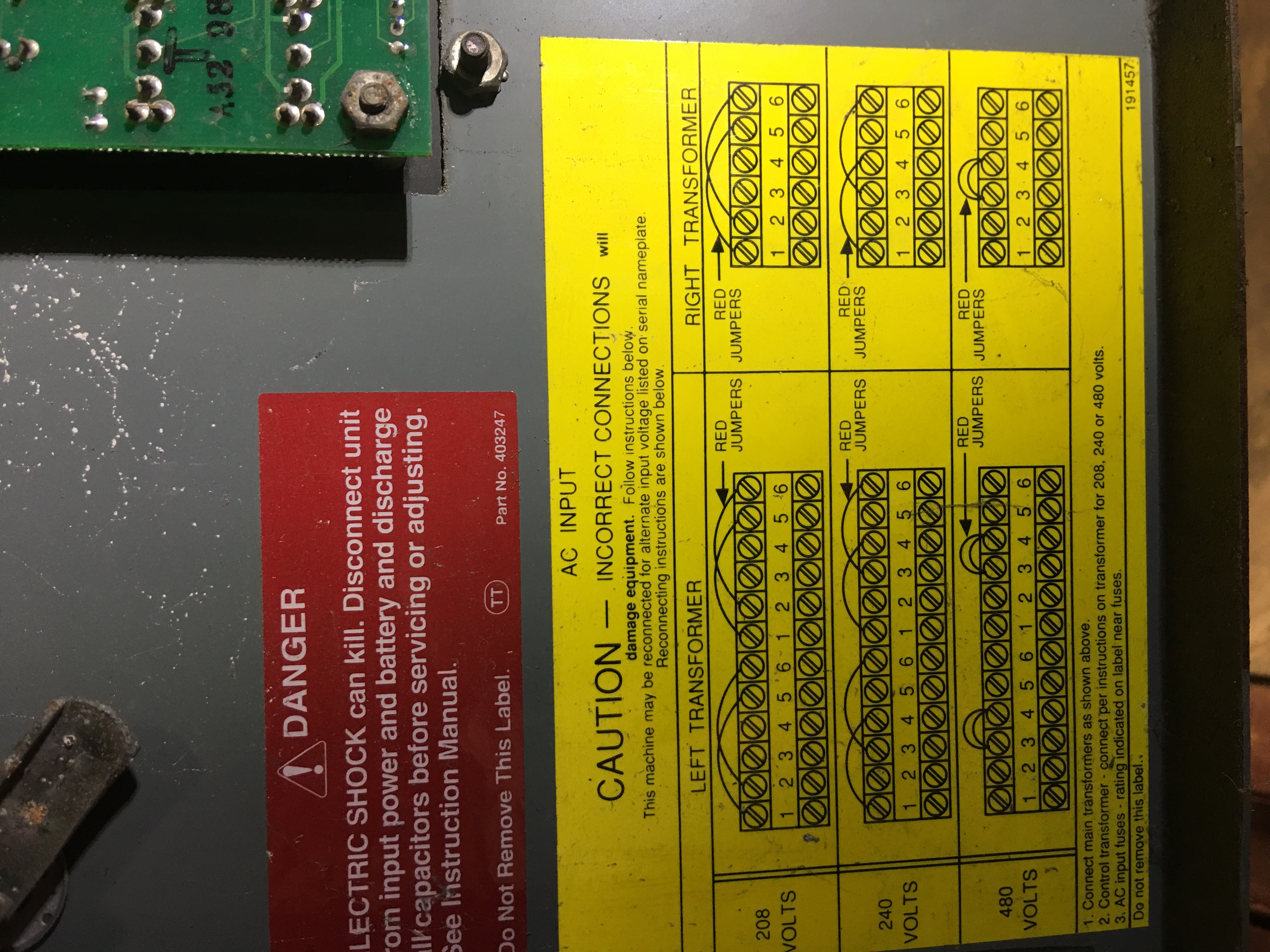

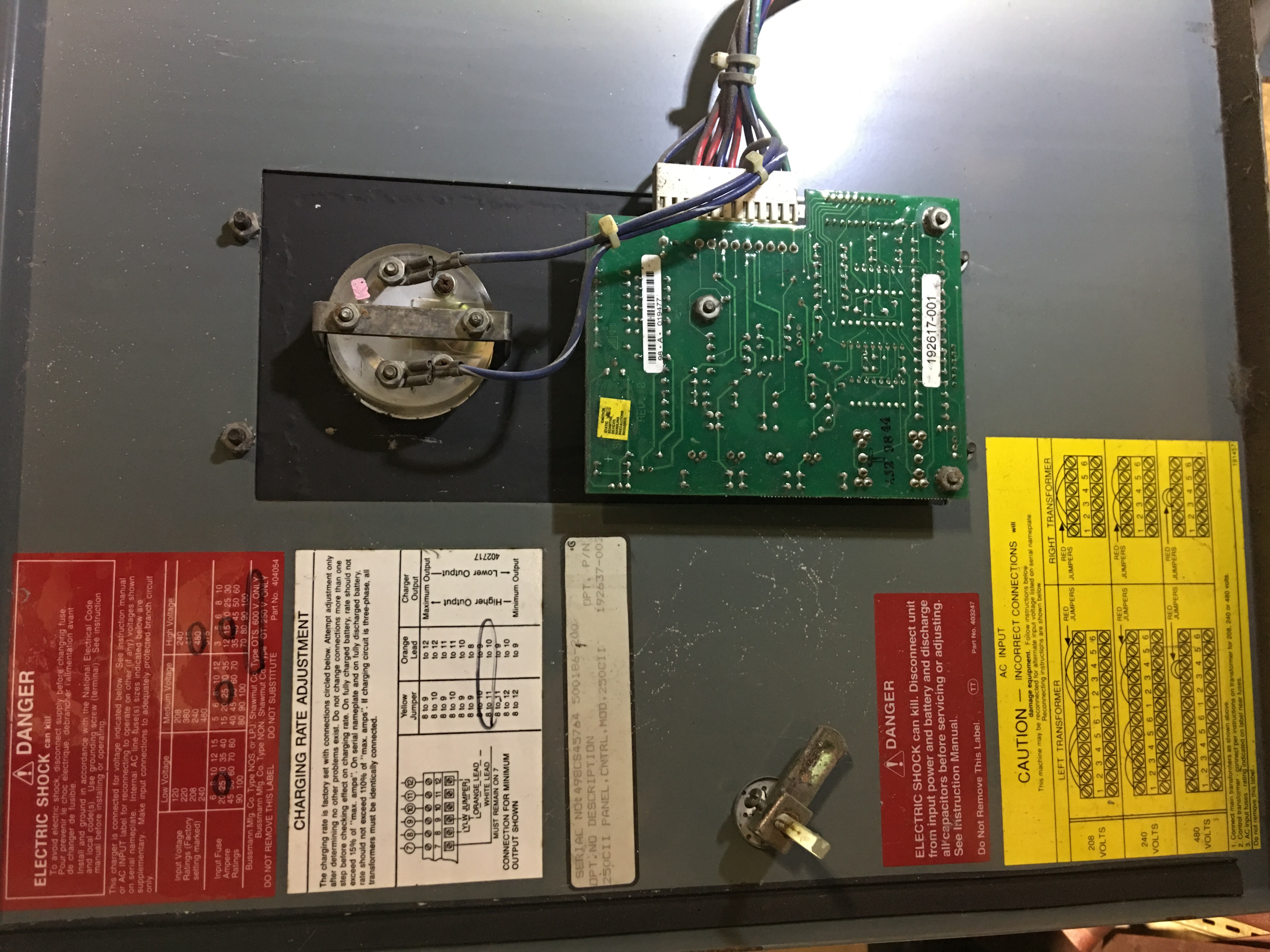

Hobart forklift battery charger internal wiring jumper schematics.
Hobart forklift battery charger internal wiring jumper schematics.
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

Inside
Attachments

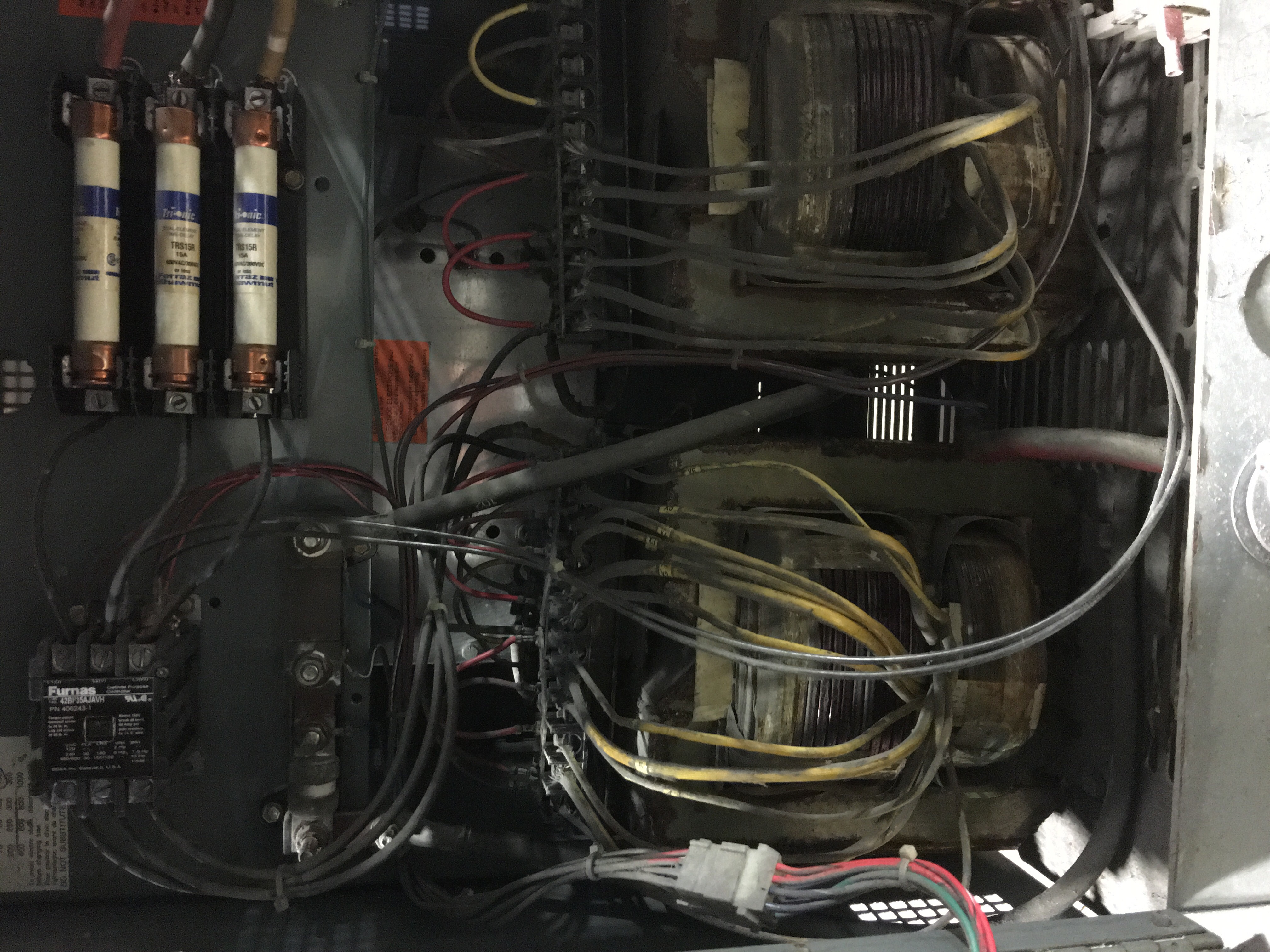

Hobart forklift battery charger internal components.
Hobart forklift battery charger internal components.
hiandlotech
Posts: 64
Joined: Fri Aug 26, 2016 8:38 pm

Re: Clark electric forklift Please Help

Post by hiandlotech »

Glad it worked, yes there is a way but that is more of a battery technician question, we don't really hardwire anything usually we call out the battery Technicians,

But from what I know yes you can wire 2 phase which is (240 volt) but you would have to re-wire the inside to do so, I don't want to steer you in the wrong direction with this one
Caterpillar Certified- Nissan Certified
Clark Technician- Jungheinrich
mexiCAN :mrgreen: :mrgreen:
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

Ok thanks for all the help!
