Clark electric forklift Please Help

Basic electric forklift information related to all makes and models.
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

Yes I did that about two weeks ago haha but still no luck
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

The light goes on and off like it should for p-Brake
hiandlotech
Posts: 64
Joined: Fri Aug 26, 2016 8:38 pm

Re: Clark electric forklift Please Help

Post by hiandlotech »

Okay I'm working on getting a break down for this code, but yes it is a possible seat switch code being a -1 operator error code, just to be safe you can check continuity from wire 6 of the controller to the parking brake wire,
Caterpillar Certified- Nissan Certified
Clark Technician- Jungheinrich
mexiCAN :mrgreen: :mrgreen:
hiandlotech
Posts: 64
Joined: Fri Aug 26, 2016 8:38 pm

Re: Clark electric forklift Please Help

Post by hiandlotech »

Okay here's an update, on the parking brake wire it should have 36 volts coming from the controller, so check for voltage on the parking brake switch, I'm trying to find a different angle but code -01 is a parking brake error code,
Caterpillar Certified- Nissan Certified
Clark Technician- Jungheinrich
mexiCAN :mrgreen: :mrgreen:
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

Yes parking brake is getting 36
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

Seat switch is not
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

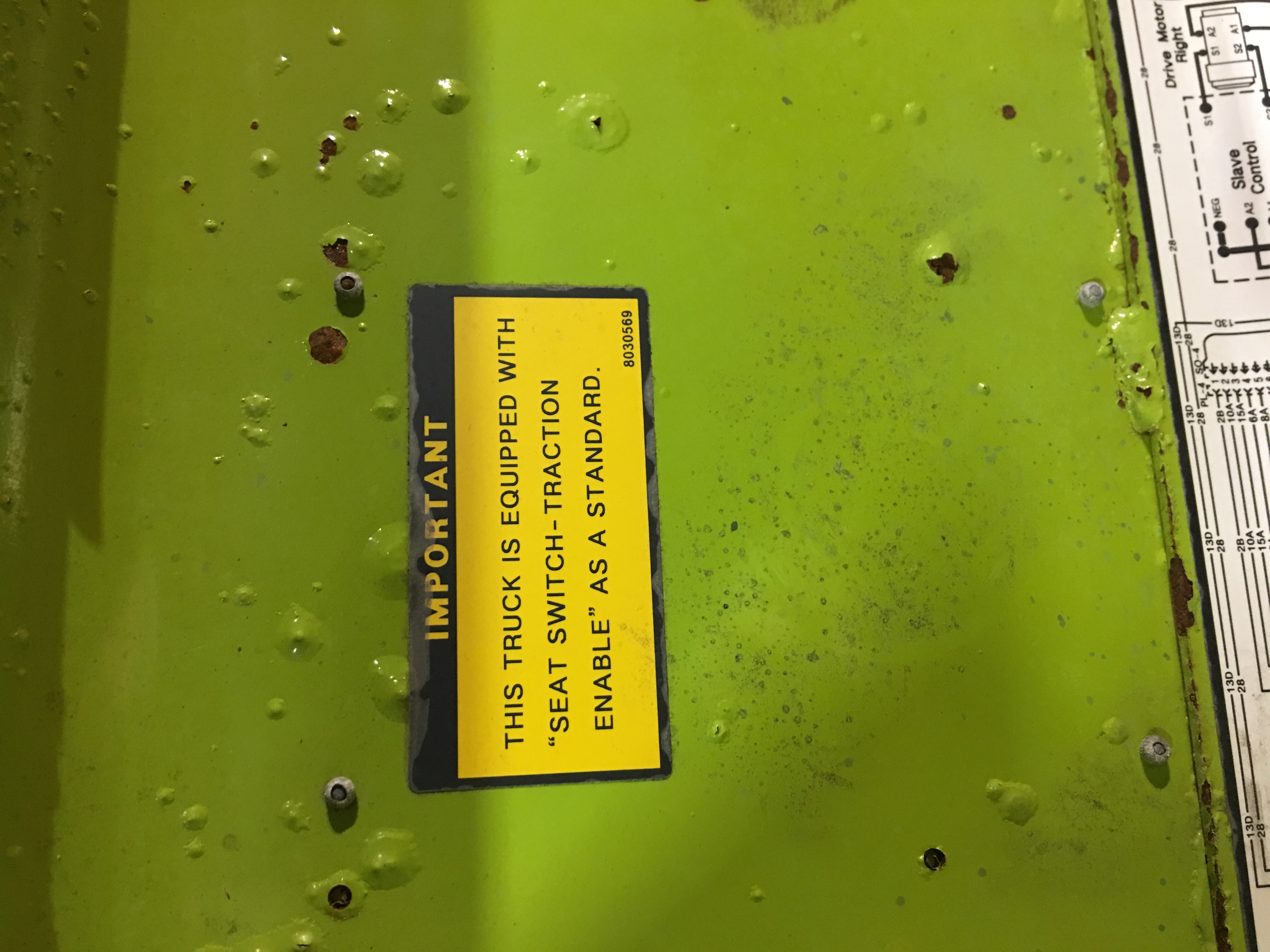

Don’t know if this will help but is under the seat
Attachments

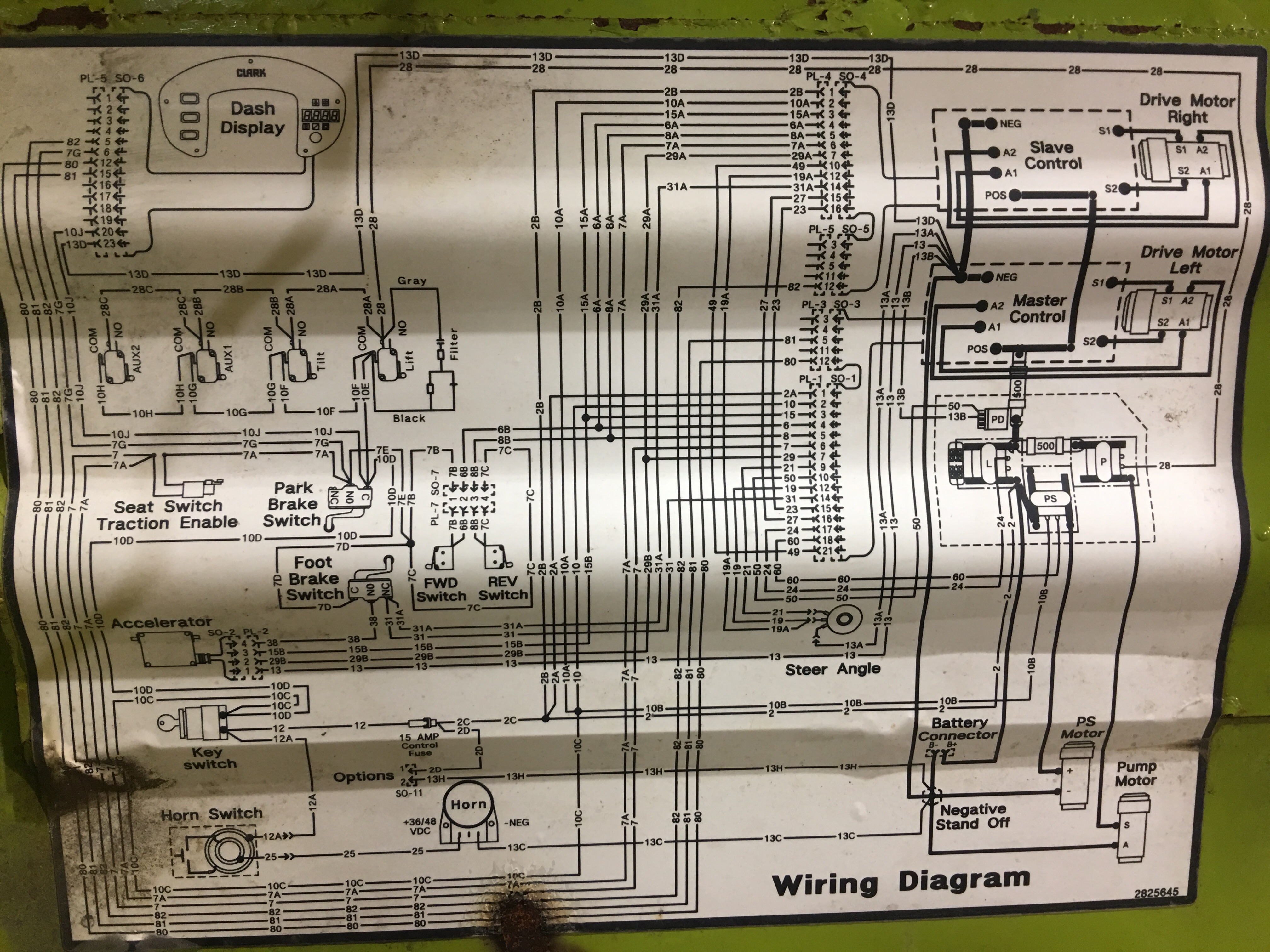

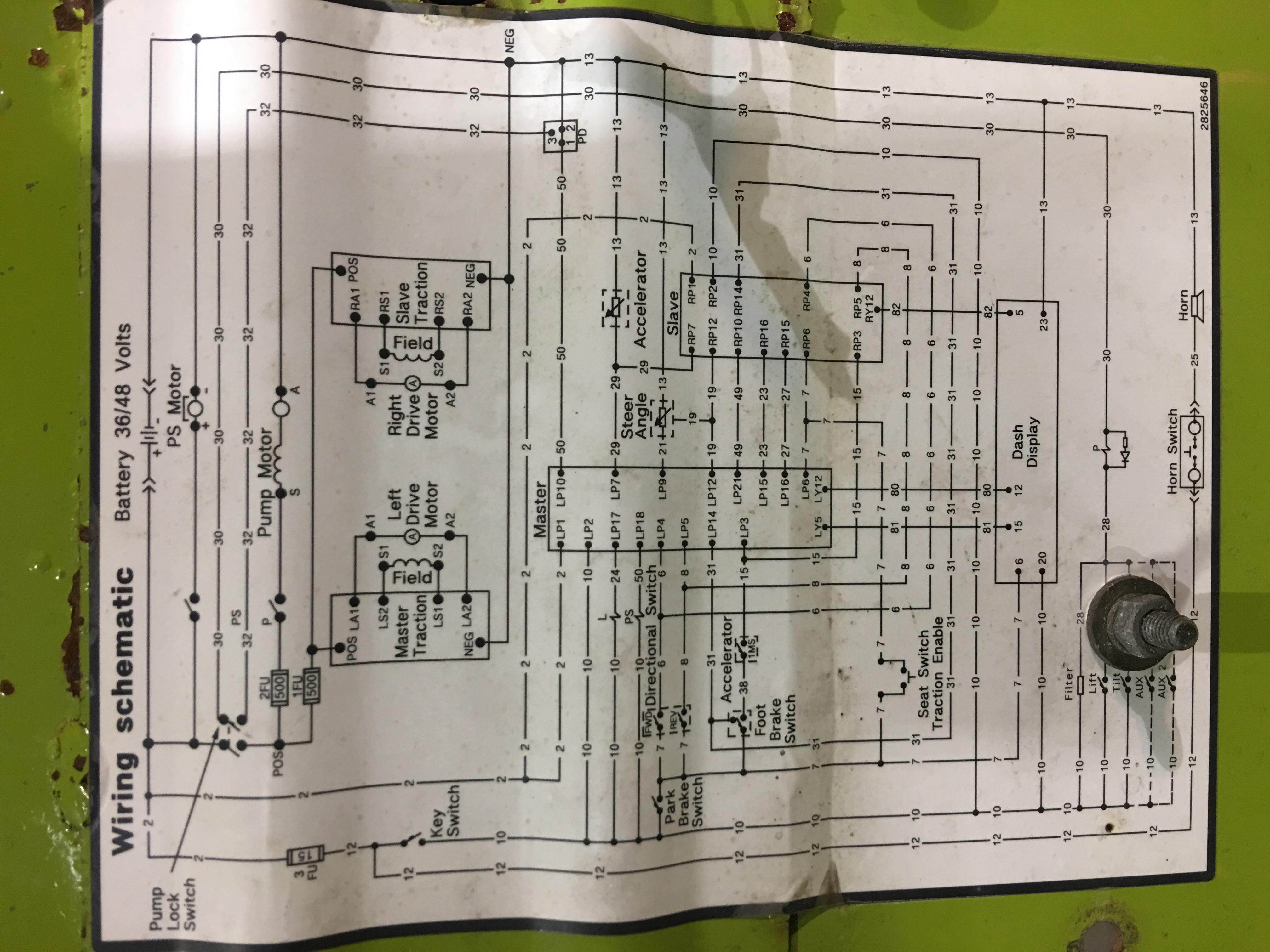

TMG 15S electric forklift wiring schematic.
TMG 15S electric forklift wiring schematic.
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

Here is another
Attachments

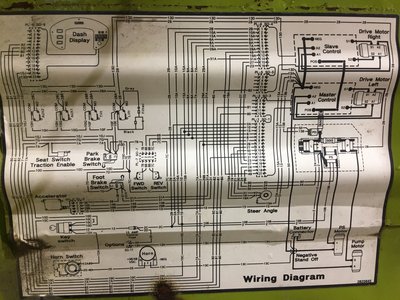

Clark TMG 15S electric forklift wiring harness schematics.
Clark TMG 15S electric forklift wiring harness schematics.
hiandlotech
Posts: 64
Joined: Fri Aug 26, 2016 8:38 pm

Re: Clark electric forklift Please Help

Post by hiandlotech »

Okay your missing voltage somewhere, goes from the key switch to the park brake switch, when park brake switch is closed which is wire 7 it feeds directional switches, seat switch, and foot brake switch,so one of those is not completing the circuit.

So yes it a possible that you are missing voltage to the seat switch, you can run your own wire to the seat switch to close the circuit or look for breakage
Caterpillar Certified- Nissan Certified
Clark Technician- Jungheinrich
mexiCAN :mrgreen: :mrgreen:
KeithDaley
Posts: 0
Joined: Tue Jan 09, 2018 11:49 am

Re: Clark electric forklift Please Help

Post by KeithDaley »

I am getting 36 to parking brake and foot brake but not seat switch. And yes if I run a jumper to the seat switch it works!
Now I guess I just have to find the break in the wire for the seat switch
Thanks for all the help you are awesome!
Now I have another question haha
I have a Hobart Battery Mate charger.
S/N 498CS45764
Model: 750H3-18C
It’s a 3 phase charger but I do not have 3 phase at my new shop. I heard it can be wired to run on 2 phase or single phase. Do you know if it’s possible and if so how? Thanks again
