Code 150 on dash of Caterpillar forklift

Caterpillar Sit down Rider Electric Forklift questions and answers
Post Reply
BobbyT

Code 150 on dash of Caterpillar forklift

Post by BobbyT »

Caterpillar forklift e12000 electric has code 150 on the dash and the hydraulic controls for tilt and lift are not working. Driver was just doing his usual work when the code 150 popped up and the truck will not tilt. Any answers appreciated. Thanks.
hiandlotech
Posts: 64
Joined: Fri Aug 26, 2016 8:38 pm

Re: Code 150 on dash of Caterpillar forklift

Post by hiandlotech »

Code 150 Caterpillar E8000-E12000 NO lift/tilt

Code 150 is defined as No lift no tilt, it is also defined as Lift contactor is closed but there is no voltage going from the contactor to the hydraulic controller. Main reason for this code is the ANL350 fuse that is located from the lift contactor to the hydraulic controller. Very rare it’s a case of lift contactor tips are worn and no continuity is available. Remove and replace ANL350 fuse.
Attachments

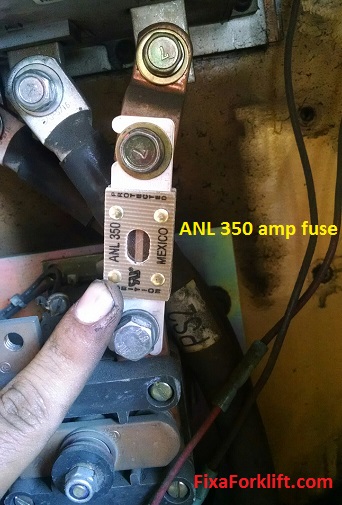

Caterpillar forklift 350 amp forklift fuse.
Caterpillar forklift 350 amp forklift fuse.
